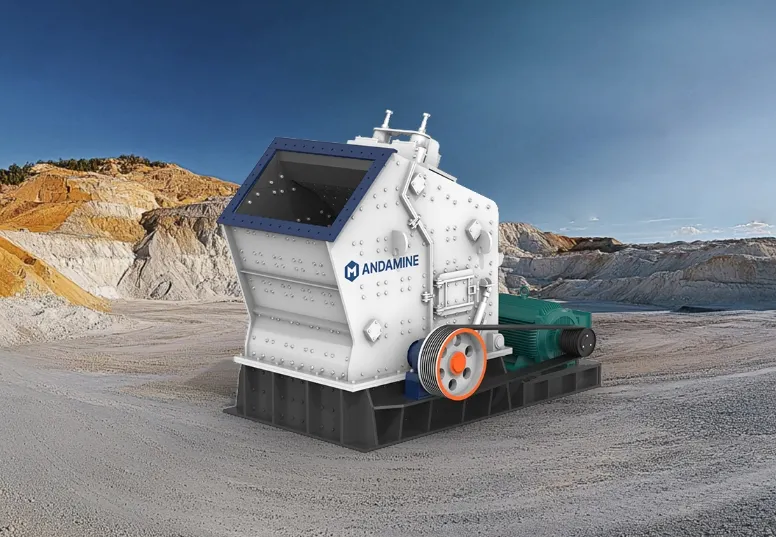

ANDAMINE impact crusher can be used as both a primary and secondary crusher which offers cost savings and versatility that cannot be matched by other crushing systems. It can produce crushed material with an optimal cubic shape for asphalts and concretes, allow faster and simpler maintenance. It also has continuous production curves with no irregularities or breaks between sizes.
Feeding Size:
＜900mm
Finished Product:
5-200mm
Processing capacity:
50-700t/h
Types of ANDAMINE Impact Crushers
We can select a suitable impact crusher for you, according to the size of raw materials, aggregate requirements, and site construction requirements. Most importantly, ANDAMINE crusher experts can also develop customized solutions for you.

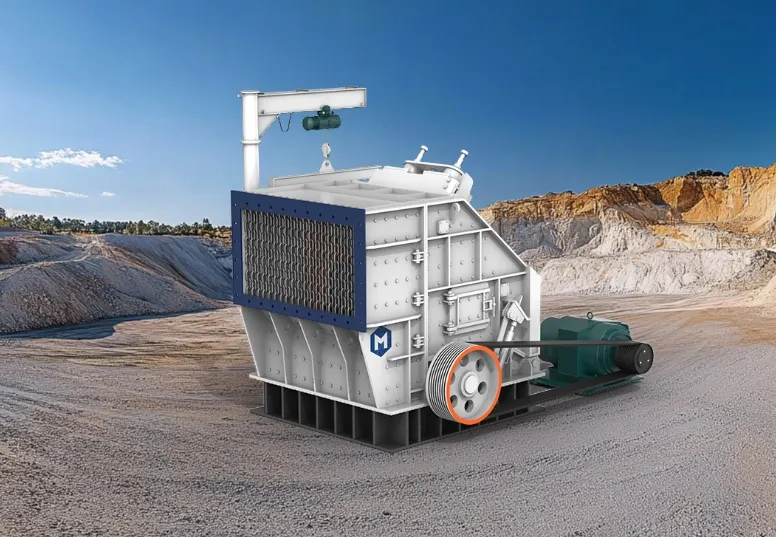

APF-H Hydraulic Impact Crusher
- Capacity: 100-500 t/h, Customizable
- Inlet Size(mm): ≤500 mm, According to model
- Motor Power: 90-400 kw
- Description: Large crushing ratio, and one machine can replace the two-stage crushing process of the jaw crusher and impact crusher. It is ideal for crushing medium and low hardness materials.
- Advantages: This series of products are widely used in the crushing of artificial sand and gravel aggregates in hydropower and highways.
Get A Quote >
APF Impact Crusher
- Capacity: 50-550 t/h, Customizable
- Inlet Size(mm): ≤900 mm, According to model
- Finished Products Size: 5~200 mm
- Processed Materials: Limestone, granite, construction wastes(concrete waste, brick waste).
- Description: Widely used for medium-sized crushing of ore and bulk materials in mining, metallurgy, construction, road, railway, water and chemical industries.
- Features: modular design; easy for wearing parts replacement; good product shape.
Get A Quote >
Impact Crusher In Stone Crushing Plant
Impact crusher can be used in primary and secondary crushing. They are suitable for crushing medium-hardness materials, such as limestone, granite, construction wastes (concrete wastes, asphalt wastes, brick wastes, etc.).

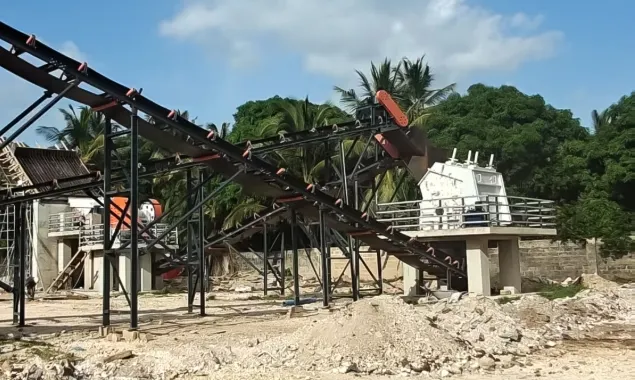

- Type: Stationary crusher plant
- Capacity: 50-1200tph (customizable)
- Crushing Materials: limestone, concrete wastes, asphalt wastes, brick wastes, etc.
- Configuration: jaw crusher + impact crusher + vibrating feeder + vibrating screen + belt conveyors.
- Advantages: Large crushing ratio and high production efficiency, which bring considerable economic benefits to you.
Get A Quote >

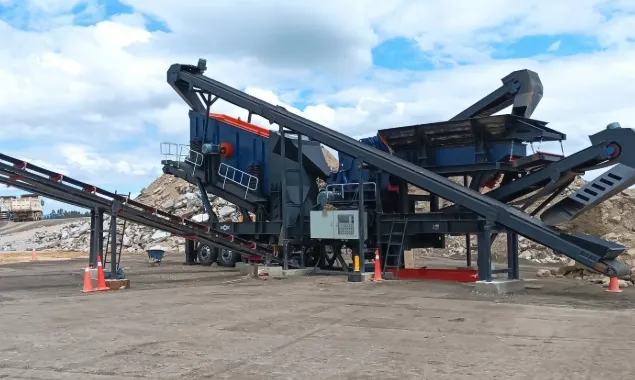

- Type: Mobile crusher plant
- Capacity: 50-300tph (customizable)
- Configuration: Vibrating feeder+ impact crusher + vibrating screen + belt conveyors
- Application: It is suitable for short-term small and medium-sized projects, such as the disposal of construction wastes, etc.
- Advantages: It is more flexible and cost-effective, with time-saving advantages in disassembly, transportation, and installation.
Get A Quote >
Specifications
| Model | Rotor diameter*length(mm) | Inlet size(mm) | Max.Feed size(mm) | Capacity(t/h) | Power(kw) | OverallsizeL×W×H（mm） | Weight(t) |
|---|---|---|---|---|---|---|---|
| APF1007V | Φ1000*700 | 400*730 | 200 | 20-50 | 45-55 | 2400×1550×2660 | 9.5 |
| APF1010V | Φ1000*1050 | 400*1080 | 200 | 35-80 | 55-75 | 2400×2250×2620 | 12.2 |
| APF1210V | Φ1250*1050 | 570*1030 | 250 | 70-120 | 90-110 | 2690×2338×2890 | 15 |
| APF1214V | Φ1250*1400 | 570*1430 | 250 | 90-180 | 132-160 | 2690×2688×2890 | 18.5 |
| APF1315V | Φ1320*1500 | 625*1530 | 350 | 150-250 | 160-200 | 3096×3273×2667 | 19.5 |
| APF1320V | Φ1320*2000 | 625*2030 | 350 | 160-350 | 200-280 | 3096×3560×3185 | 28 |
| APF1415V | Φ1400*1500 | 800*1530 | 400 | 280-350 | 250-315 | 3220×3473×2960 | 33 |
| APF1520V | Φ1500*2000 | 1315*2040 | 500 | 300-500 | 315-400 | 3890×3564×3220 | 43 |
| Model | Rotor diameter*length(mm) | Inlet size(mm) | Max.Feed size(mm) | Capacity(t/h) | Power(kw) | OverallsizeL×W×H（mm） | Weight(t) |
|---|---|---|---|---|---|---|---|
| APF1210 | 1200*1000 | 450*1060 | 350 | 100-160 | 90-110 | 2550x1940x2110 | 17 |
| APF1214 | 1200*1400 | 450*1440 | 400 | 130-200 | 132-160 | 2550x2340x2110 | 22 |
| APF1315 | 1300*1500 | 550*1530 | 450 | 180-320 | 160-200 | 2720x2460x2410 | 29 |
| APF1320 | 1300*2000 | 610*1900 | 500 | 230-400 | 200-250 | 2720x3060x2410 | 38 |
| APF1415 | 1400*1500 | 800*1530 | 600 | 280-450 | 250-315 | 3120x2650x2660 | 40 |
| APF1520 | 1500*2000 | 830*2040 | 700 | 320-550 | 315-400 | 3959x3564x3330 | 45 |
Global Projects
ANDAMINE has exported crushing plants in 100+ countries, providing customers with versatile and ideal crushing plant solutions.

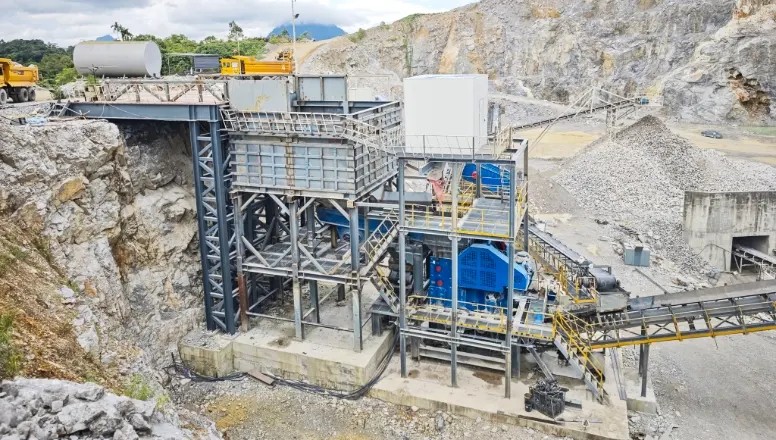

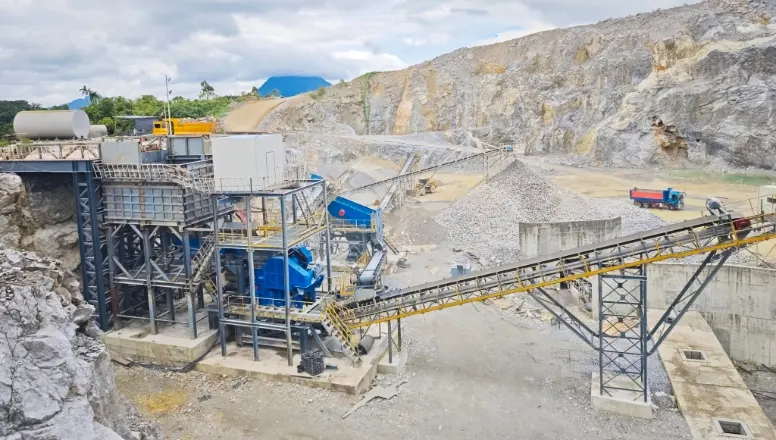

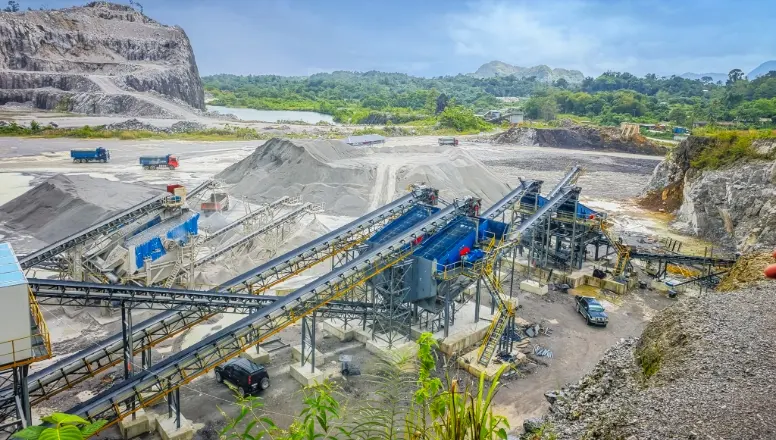

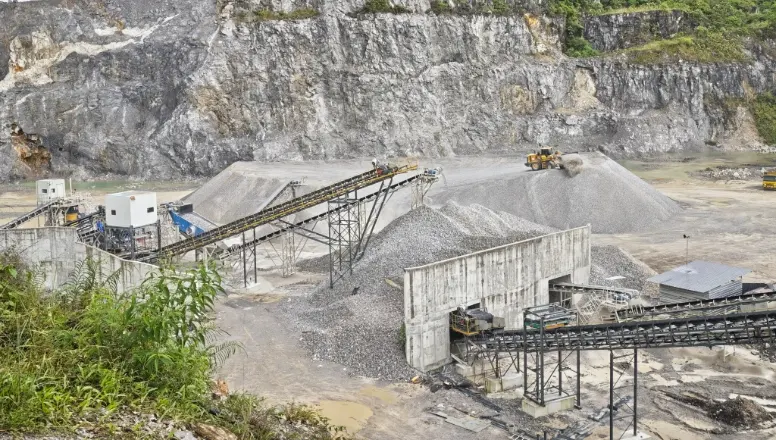

350TPH Crushing and Screening Plant Running Well In Malaysia
Raw Material: Cobblestone
Crusher Model: Jaw Crusher + Impact Crusher
Finished Product(mm): 0-5-10-30mm
Configuration: Vibrating Feeder, Jaw crusher, Impact Crusher, Vibrating Screen, etc.
Application: Road paving.
Get A Quote >

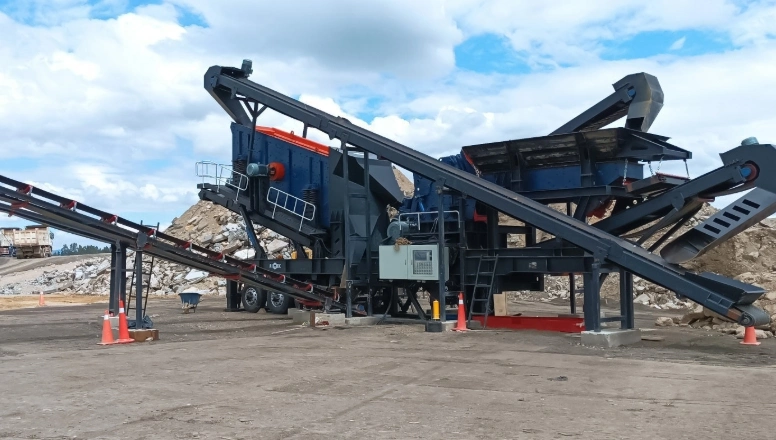

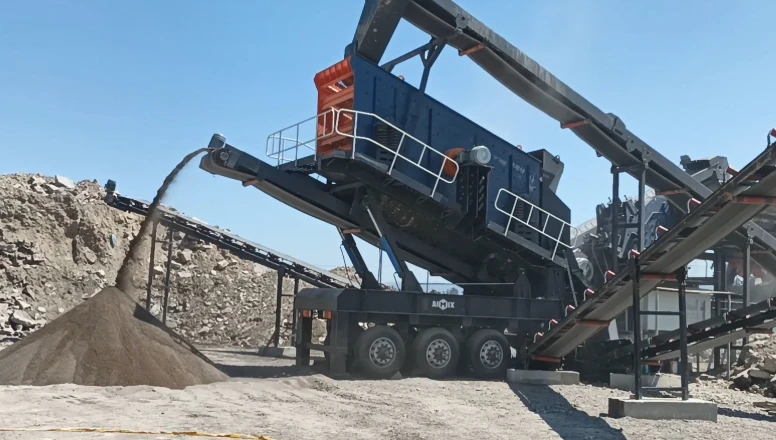

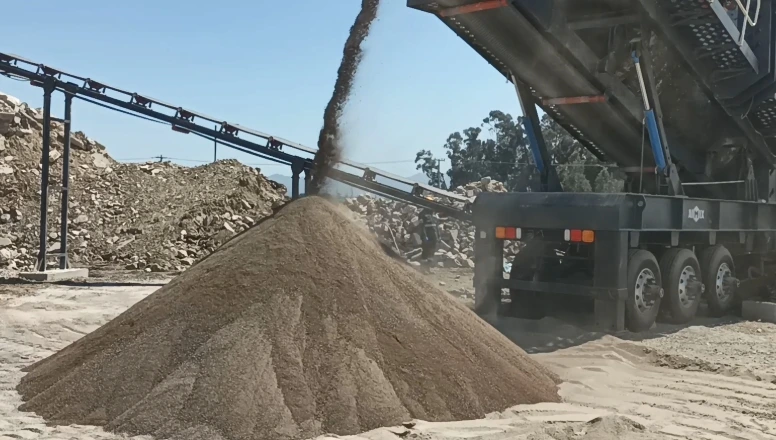

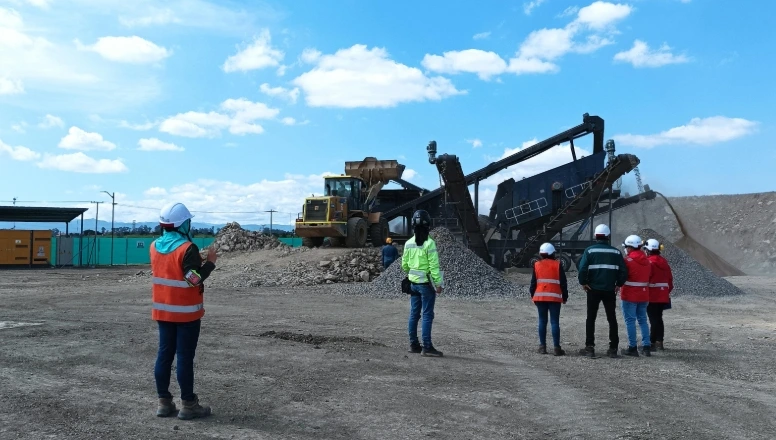

APY3-F 120t/h Mobile Impact Crushing Plant – Concrete Waste Processing
Max Feeding Size: 500mm, with a small amount of steel bars
Finished Product(mm): 0-1/4’-3/4′-1′-2′(0-5-19-25-50mm)
Advantages:
1. Heavy-duty chassis, 3-axle design, better quality, more stable travel
2. Self-unloading iron remover effectively removes iron from crushed material
3. Impact crusher with new tech, hydraulic clearance adjustment, ZWZ brand bearings
4. Partially raised raw material bin, hydraulically foldable, locking system for easy transport.
Get A Quote >
ANDAMINE Service
Project Consultant & Solution Offered
ANDAMINE professional engineer team can provide you with customized crushing plant solutions based on the basic conditions of your project, such as budget, raw materials, productivity, output size, etc.
On-site Installation & Training
ANDAMINE can send technical experts to the site to help you install and debug the equipment on site to ensure smooth operation.
Spare Parts Availability
Setup comprehensive spare parts inventory, providing essential components such as jaw plates, liners, conveyor belts, bearings, hydraulic parts, and more.
Customized Crushing and Screening Solutions
According to the basic information of your crushing project, our engineer will give you customized crushing and screening solutions.
